The Power of 5-Axis CNC Machining: Precision & Efficiency at Ameritex Machine & Fabrication

In the world of precision metal fabrication, manufacturers constantly seek ways to improve accuracy, reduce costs, and increase efficiency.
One of the most significant advancements in modern manufacturing is 5-axis CNC machining. Unlike traditional 3-axis machining, which moves along the X, Y, and Z axes, a 5-axis CNC machine adds two rotational movements, allowing for greater flexibility and more complex part geometries.

At Ameritex Machine & Fabrication, we leverage 5-axis CNC technology to produce high-precision components with faster turnaround times and tighter tolerances—delivering superior quality for industries that demand advanced manufacturing capabilities.

Benefits of 5-Axis CNC Machining

1. Precision for Complex Parts
5-axis machining enables the manufacturing of highly complex parts with ultra-tight tolerances. By allowing the cutting tool to move simultaneously along five axes, we can achieve tolerances as precise as ±0.0005 inches. This is essential for industries like aerospace, medical, and automotive manufacturing.

2. Reduced Setup Time & Enhanced Efficiency

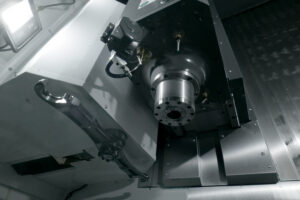

Traditional CNC machining often requires multiple setups for complex parts, increasing labor time and the potential for human error. With 5-axis CNC machining, multiple surfaces can be machined in a single operation, improving accuracy and reducing labor costs.P1053485

3. Superior Surface Finishes
The ability to maintain optimal tool angles in 5-axis machining results in smoother surface finishes. This frequently eliminates the need for secondary processes like grinding or polishing, especially valuable in medical, aerospace, and high-end industrial applications.

4. Cost Efficiency
Fewer setups, reduced waste, and enhanced part accuracy make 5-axis machining an efficient and cost-effective solution—ideal for both high-volume production runs and custom fabrication projects.

Versatility in Materials

At Ameritex Machine & Fabrication, our 5-axis CNC machining capabilities extend across a wide range of materials:

  • Aluminum
  • Stainless Steel
  • Titanium
  • Brass
  • Copper
  • Hardened Steel

This material flexibility allows us to meet the unique requirements of diverse industries.

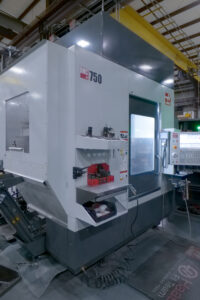

The Haas UMC-750: Our 5-Axis Workhorse

To deliver best-in-class precision machining, we rely on the Haas UMC-750—a high-performance 5-axis universal machining center designed for speed, versatility, and unmatched accuracy.

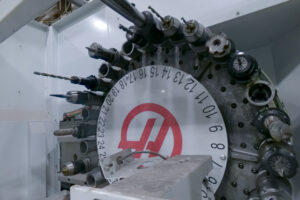

Key Specifications:P1053489

  • X-Axis Travel: 30 inches (762 mm)
  • Y-Axis Travel: 20 inches (508 mm)
  • Z-Axis Travel: 20 inches (508 mm)
  • Rotational Axes: ±120° on the B-axis, 360° on the C-axis
  • Spindle Speed: 8,100 RPM (optional 12,000 RPM)
  • Tool Capacity: 40+1 automatic tool changer

With its robust cutting power and fast spindle speeds, the Haas UMC-750 is built to meet the most challenging demands of modern precision machining.

Industries We Serve

Aerospace & Defense
  • Turbine blades, structural components, aerospace fasteners
  • High-strength, lightweight materials for mission-critical performance
Automotive & Motorsports
  • Custom engine parts, transmission housings, precision-machined components
  • Enhanced aerodynamics and performance
Medical & Healthcare
  • Surgical instruments, implants, prosthetics
  • Biocompatible materials with exact tolerances
Oil & Gas
  • Drill bits, pipeline fittings, pressure-resistant components
  • Engineered for extreme durability and safety
Renewable Energy & Industrial Equipment
  • Wind turbine hubs, solar mounts, structural brackets
  • High-efficiency components for energy sector solutions

Why Choose 5-Axis Over 4-Axis CNC?

While 4-axis machines offer a single rotational movement, 5-axis machining delivers two, allowing:

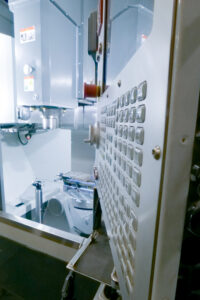

  • Complex geometry fabrication with fewer setupsP1053480
  • Improved accuracy and reduced material waste
  • Enhanced production speed and surface quality

When your project demands precision, speed, and complexity, 5-axis CNC machining is the optimal choice.

Haas UMC-750: Speed Meets Accuracy

  • Spindle Speed: 8,100 RPM (12,000 RPM upgrade available)
  • Rapid Traverse Rate: 900 in/min
  • Feed Rate: Up to 650 in/min

Looking for custom precision machining in Texas? Partner with Ameritex Machine & Fabrication and gain access to advanced 5-axis CNC capabilities, faster lead times and superior finishes, industry-proven reliability and quality

Ready to get started? Request a quote today!
